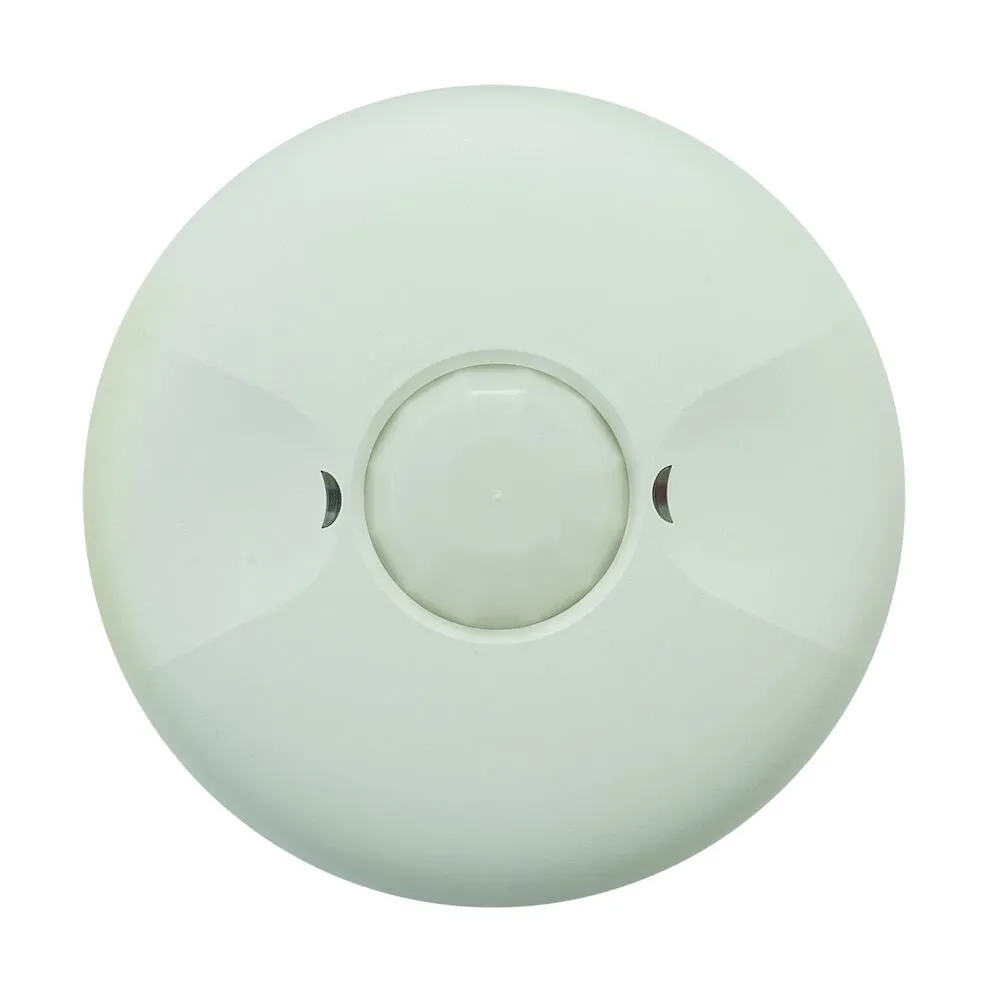

Commercial Grade Ceiling Mount Occupancy Sensor
The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
- PIR technology sensing for presence detection
- Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling
- Zero-crossing technology for long life and performance
- Adjustable ambient light sensor override
- Requires neutral connection
- Incandescent/Fluorescent/CFL/LED compatible
| Height (in.) |
1-3/8" |
| Width (in.)
|
4-9/16" |
| Weight (lbs) Each |
.40 lbs |
Spec Sheet
Info
| Type |
Commercial Grade Line Voltage Ceiling Mount PIR Occupancy Sensor, White |
Senso/Switch type
|
Occupancy; Vacancy |
| Certifications |
cULus Listed, Title 20
|
| Technology |
PIR (Passive Infrared); Zero-crossing |
| Color |
White |
Adjustable Time Delay
|
15 Sec-30 Min
|
| PIR Coverage Area (sq ft) |
1200 |
| Warranty |
2 Year Limited
|
Additional Info
| Load Type |
Incandescent; Fluorescent; CFL; LED |
| Mounting |
Ceiling
|
| Mounting Height (ft) |
8-11 ft |
| PIR Coverage Pattern (degrees) |
360° |
| Sensor Switch Type |
Occupancy |
| Sensor Technology |
PIR (Passive Infrared); Zero-crossing |
| Adjustable Time Delay |
Min 15 sec Max 30 min |
| Adjustable Light Level |
Min 10 fc - Max 150 fc |
| PIR Coverage Area (sq ft) |
1200 |
| Voltage |
120V |
| Amp. Rating |
15 A |
Load Ratings
| Tungsten Range(s) |
800 W, 120/125 VAC |
| Resistive Load Ratings Ranges |
10 A, 120/125 VAC |
| Motor Load Ratings Ranges |
1/4 HP, 120/125 VAC |
| Electronic Ballast Load Ratings Ranges |
800 VA,120/125 VAC; 1600 VA, 277 VAC |
|
| Occupancy Sensor Power Type |
Line Voltage |
| Input Voltage Range(s) |
120/277 VAC, 60 Hz |
| Neutral Connection Required |
Yes |
